Introduction

Before beginning the install process for IntelliRoute LAN Client for use with Integrations there are a few requirements before you begin. These steps are important and are required in order to proceed with a proper installation.

1. Ensure the account you are logged on with has Admin privileges.

2. Ensure the network path on the LAN Server is shared properly

3. Ensure no previous installations of the IntelliRoute LAN Client are installed.


Notice to Windows Server® Users

If you are installing IntelliRoute with MileMaker® on a server that has Remote Desktop Services, Citrix, VMWare Horizon, or Parallels installed please follow the instructions below. Otherwise, you may skip this section.

1. Open Command Prompt as an administrator
2. Enter in the following command:

change user /install

Command Prompt should report that the system is ready to install applications.
3. Begin the IntelliRoute install process; Once the installation is complete, you may return the server to "Execute" mode.
4. Place the system back into Execute mode using the following command:

change user /execute

Preparing for the Installation

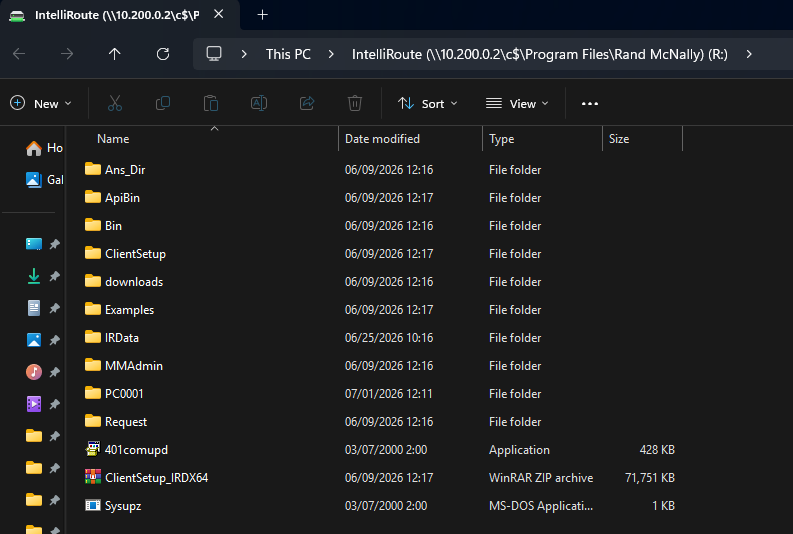

Step 1 - Navigate to the IntelliRoute Path

Navigate to your Network Share that contains the "Client Setup" folder.
In this example, our IntelliRoute server path is \\MileMakerLAB1\IntelliRoute\.

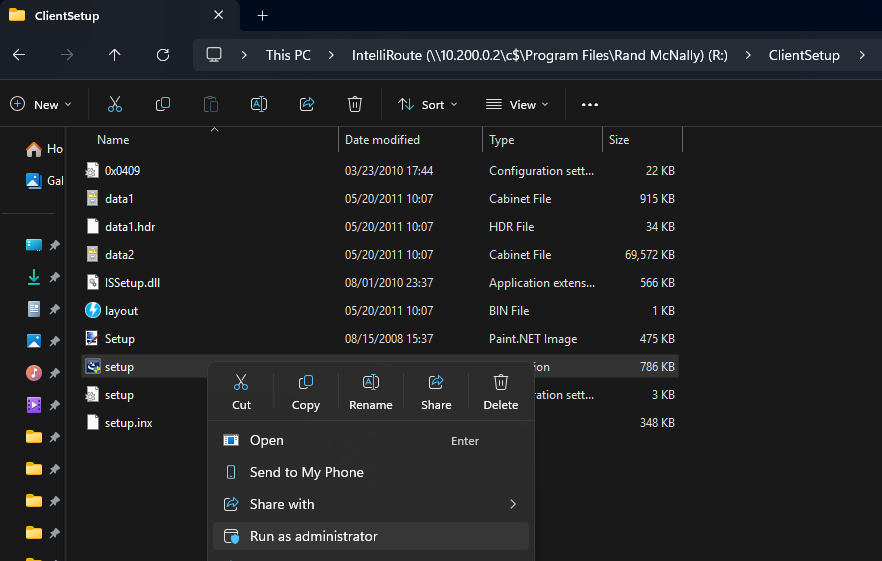

Step 2 - Launch the Client Setup Application

Ensure you are completing this step as an administrator. One note before proceeding, ensure you placed the server in Install mode if you are using Citrix, VMWare Horizon, or Remote Desktop Services.

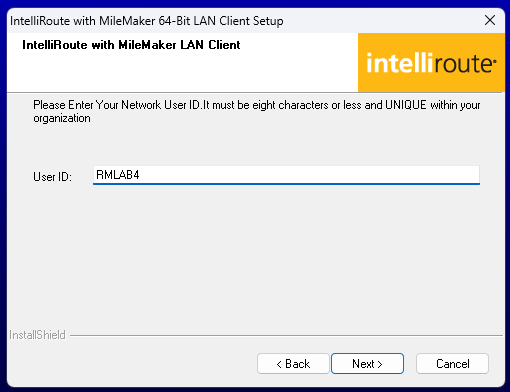

Step 3 - Setting the User ID

Once the wizard appears, click next, you should be greeted with the "User ID" prompt. Enter in a user id, or use the server's name. No more than 8 characters should be used.

In our example, we'll use RMLAB4.

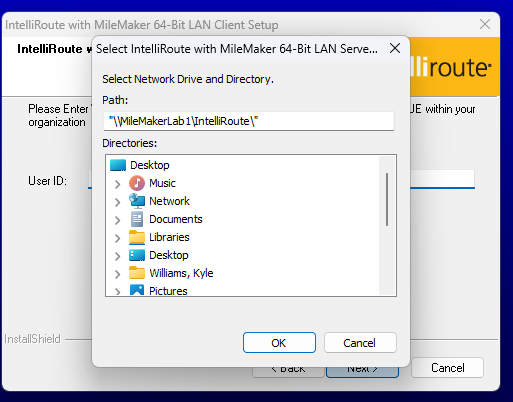

Step 4 - Configuring the Network Path

With modern versions of windows, if you ran as an administrator, it's possible we won't see the mapped network drive. In this case, we'll be using the UNC path, wrapped in quotes.

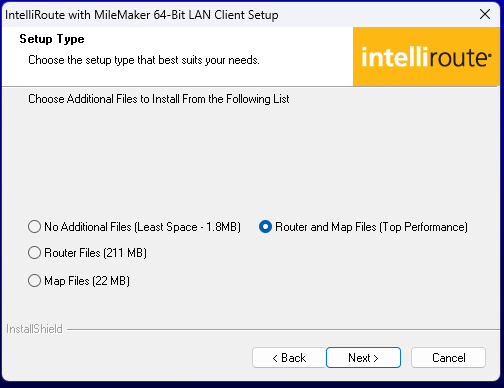

Step 5 - Selecting your Additional Files

IntelliRoute can be configured to be utilized in a few different ways. We recommend selecting "Router and Map Files (Top Performance)" if you are using this with an integration, or intend on allowing users to interface with IntelliRoute.

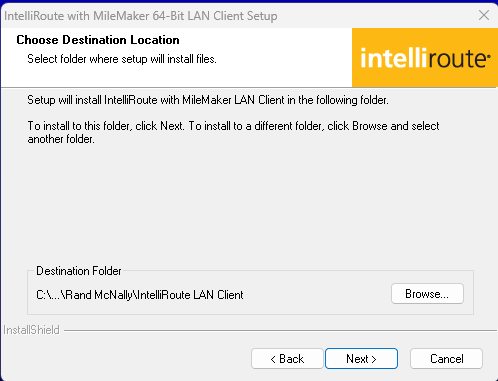

Step 6 - LAN Client Install Path

Unless your integration requires a special path, we recommend leaving this default for the best experience.

You'll select Next > until the wizard completes.

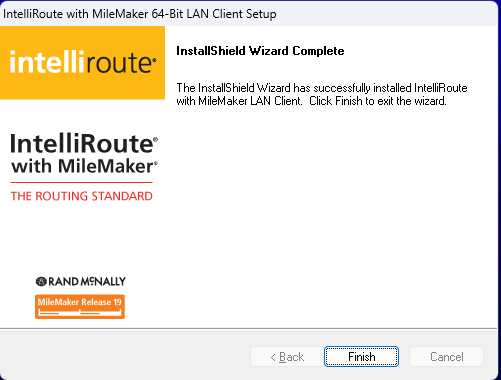

Step 7 - Installation Complete

The installation is now complete. If you are not integrating into IntelliRoute, your process is complete. If you are using this with an integration from one of our partners, please proceed to step 8.

Step 8 - Verifying the Environment Variables (Path)

From your start menu, launch 'Advanced System Settings' you can also call this exact dialog by pressing WINKEY+R and entering in sysdm.cpl

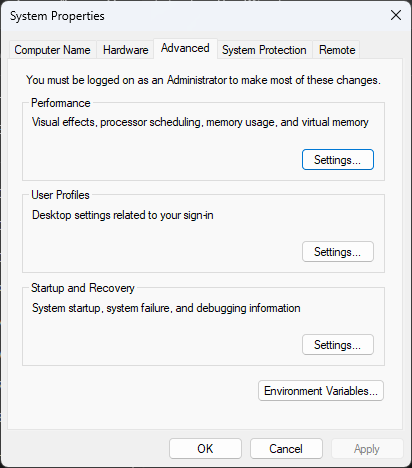

Next, Navigate to the 'Advanced' Tab
Once this dialog appears, click on 'Environment Variables...' in the bottom right.

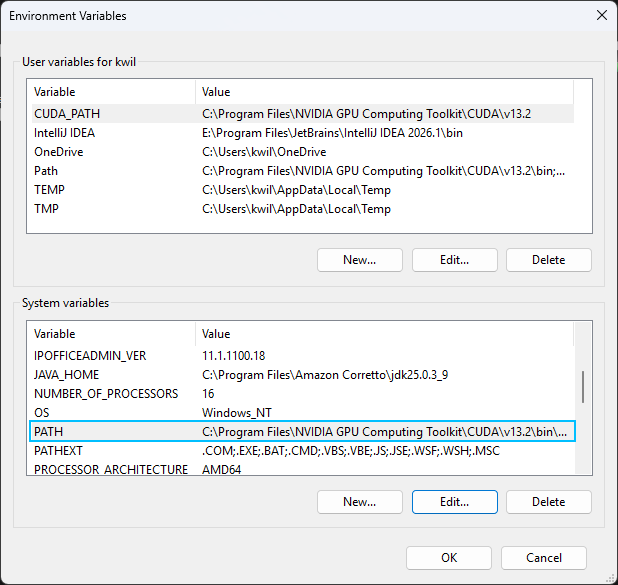

Next, In the bottom box (system), click on the Path item in the list, and then click on Edit.


You should see an entry for the UNC path we entered in the installation wizard, appended with '\ApiBin'

If the Environment Variable for API Bin exists in path, your installation is complete. If the variable did not exist, click on 'New' and enter in the UNC Path or Mapped Drive path for the installation appended by ApiBin.

For example, if your network share is at:
\\MileMakerLab1\Rand McNally\IntelliRoute, your PATH would be: \\MileMakerLab1\Rand McNally\IntelliRoute\ApiBin
Otherwise, if mapped to the IntelliRoute folder (\\MileMakerLab1\IntelliRoute, your path would be: \\MileMakerLab1\IntelliRoute\ApiBin)

For additional questions, please contact the MileMaker Support team via Email at support@milemaker.com, via phone at +1 800-234-4069 or click on the "Open a Case" option at the top of this page.
